As the exclusive representative of Axioma ultrasonic smart water meters in India having sales and after sales we bring the latest innovations in water metering technology to the country, contributing to efficient water management.
Smart Water Metering Projects
Major projects
Implementation of smart water meters (Ultrasonic ) for ABD area of the city. Along with setting up of LoRa Network with metering MDMS and billing platform.
PCMC (Pimpri Chinchwad municipal corporation ) 10000 no’s
MSCL (Moradabad smart city limited). 22913 no's
ASCL (Agra smart city limited) 17500 no's
CSCL (Chandigarh smart city limited) 14500 no’s
TSCL (Trivandrum smart city Ltd) 9000 no’s
NBCC Sarojini Nagar 2500 no’s
Katri Water for multistoried houses in Bangalore. 3000 no’s
Present Technology
MECHANICAL(MULTIJET) METER
- Contains a turbine or impeller that spins as water flows through it. The rotation of the turbine is proportional to Flow rate of water
- Consist of moving parts, Wear and tear over time which effects change in accuracy
- Starting flow approx. 5-10 l/h
- Dynamic flow range usually R80-R160 (low accuracy in measurement)
- Air is also counted
- No alarms available (leakage, tampering, No water , pipe burst)
- Only horizontal mounting possible which at times result in meter submerging in water during rains
- Causing pressure drop due to flow obstruction
- Periodic maintenance required
Latest Technology

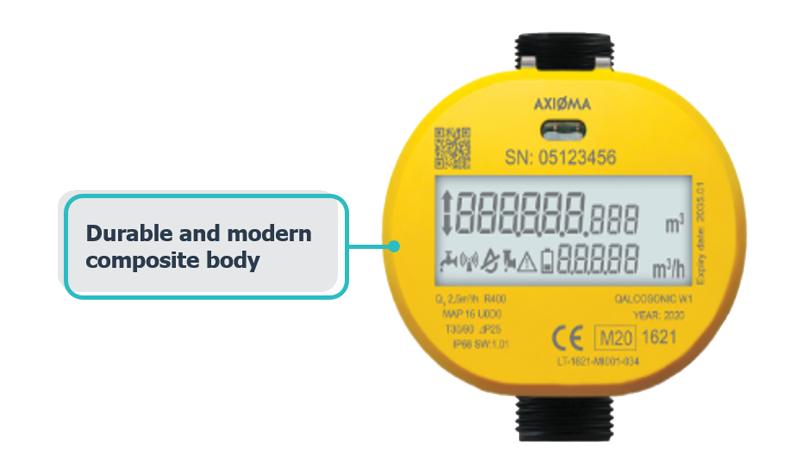

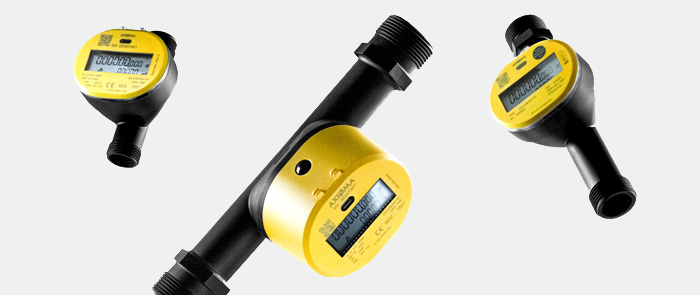

W1 SMART ULTRASONIC METER
Typically have transducers that send and receive ultrasonic pulses through the water flow
Static method is used (no moving parts)
IOT enabled
Long-term measurement stability and reliability
Starting flow approx. 1-2 l/h
Dynamic flow range up to R400-R800
Every drop is counted
No measurement of air
Intelligent alarms in real-time
16 year battery life
Enables flexible mounting without without comprising its performance irrespective of mounting
No flow or Pressure drop
Periodic maintenance Not required

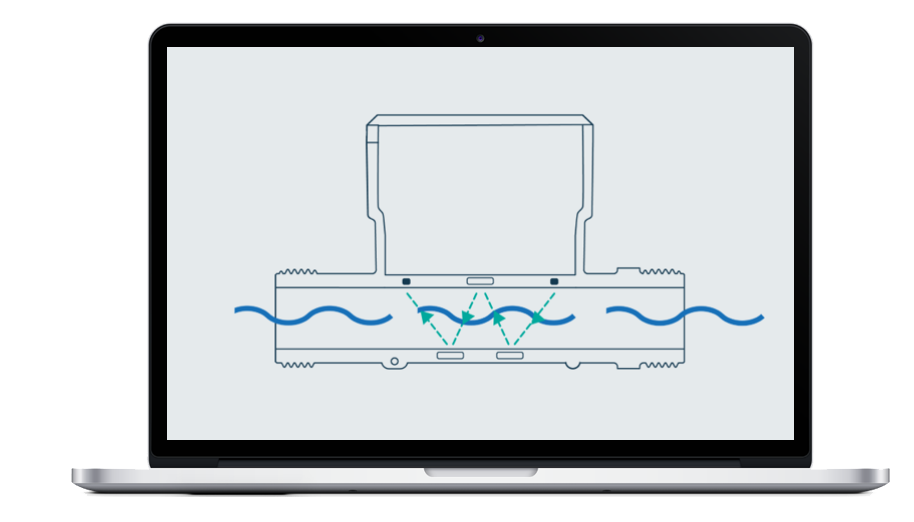

Ultrasonic Measurement Accuracy
Technical features
Environment temperature range: from -15 oC to +70 oC
Battery lifetime up to 16 years
Fully waterproof (IP68 class)
Flow profile sensitivity class: U0 D0
Environment class E2/M1
All installation positions
(vertical, horizontal, rising pipe, down pipe)
Metering archive registration
Strainer, back flow valve and protective lid (optional)
No measurement of air

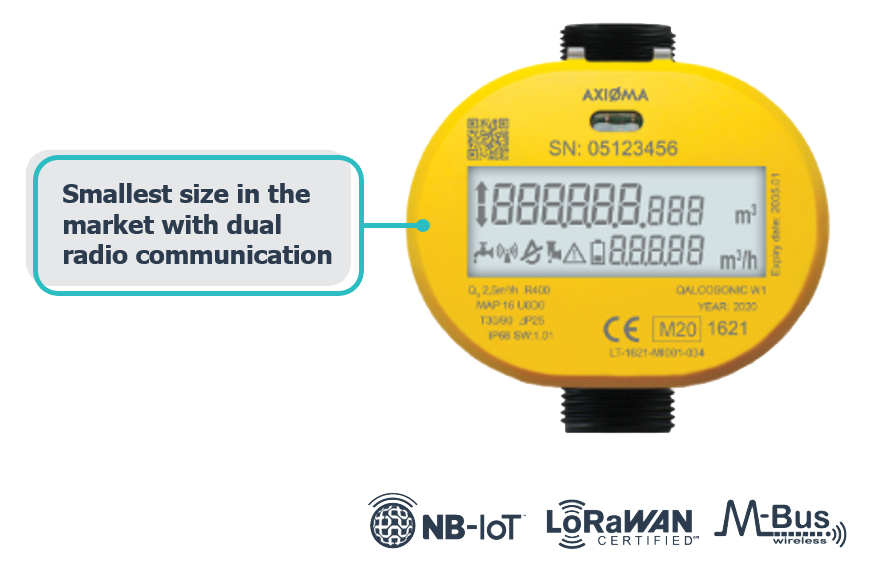

Communication modules
OPTICAL/NFC COMMUNICATION
- IrDA interface
- NFC
RADIO COMMUNICATION
- LoRaWAN
- wMBus T1 OMS / S1
- NB IoT
COMMUNICATION MODULES
- Integrated (wMBus)
- Slot mounted (LoRaWAN/NB IoT)
RADIO FREQUENCIES
- For wMBus - 433 MHz, 868 MHz
- For LoRaWAN - 865 MHz,

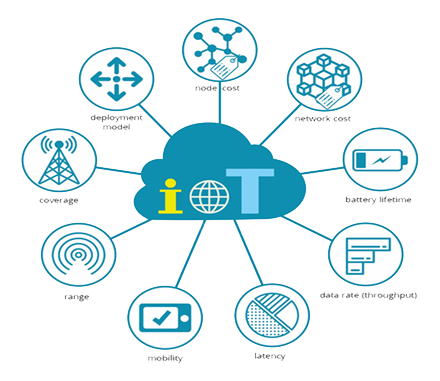

Network for AMI
- Lora is a wireless application used to establish a long range communication link.
- Lora Technology will be able to reach long distances, provide low power consumption, provide secure data transfer and provide a significant gain in IoT networks for wireless network operators.
- LORA which consists of long range definition, structural layer architecture module that can send packets to long distances with self-assembly technique
Water Management System
Water Management System: We offer innovative water management solutions that optimize water usage, monitor consumption patterns, detect leaks, and ensure efficient distribution. Our expertise lies in deploying state-of-the-art technologies, such as Axioma ultrasonic smart water meters, to accurately measure and manage water resources. These solutions contribute to water conservation and help cities achieve their sustainability goals.
